Welded Wire Mesh

Anping Guihou Wire Mesh Products Co., Ltd. is located in Anping county which has the reputation of "Chinese Hometown of Wire Mesh". This company is professionally engaged in production, processing and sales of various Perforated Metal Mesh and wire mesh products.

Tel: 0318-7538899 / 7638899   13932861896

E-mail: sales@weldedwire-mesh.com

          info@weldedwire-mesh.com

Welded wire mesh material: Low carbon steel wire, galvanized wire and stainless steel wire

Welded wire mesh kinds: Electro galvanized welded wire mesh, hot dipped galvanized welded wire, PVC welded wire mesh, stainless steel welded wire mesh, BRC 3315 Mesh ( special welded wire mesh for Singapore and Malaysia Market .)

Welding characteristics:

Including galvanized before or after welding . It is divided into hot dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting.

Welded wire mesh Using:

Industry, Agriculture, Building, Transportation, Mine, Filed, Lawn, Cultivation, Fence Guade, Decorate, Machine Protection and etc.

Specification List of Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request.
Galvanized Fencing Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.8m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.

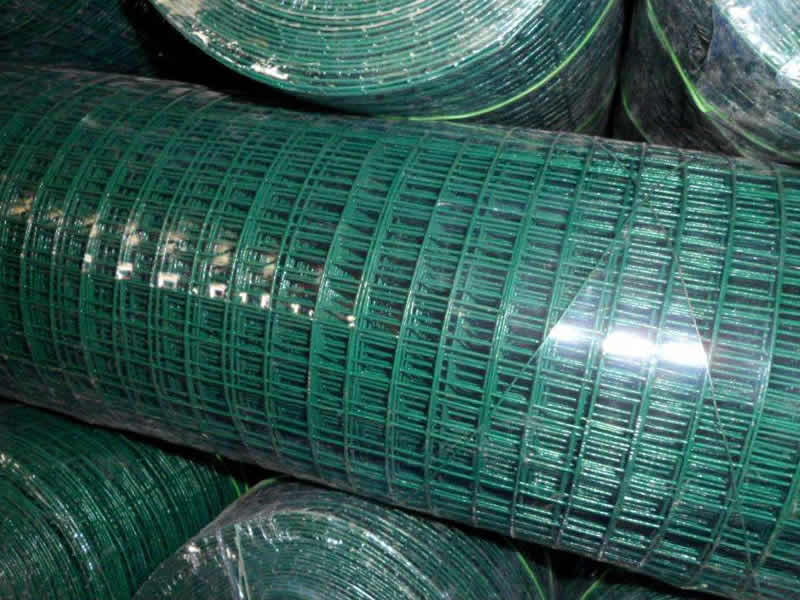

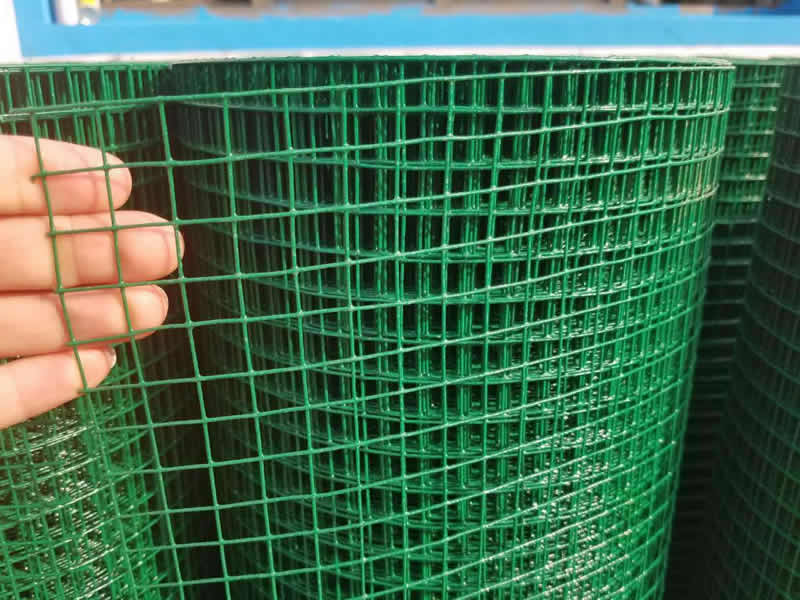

PVC Coated Welded Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.2m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.
